Used 2015 John Deere 1795

Planters: Drawn in Norris City, IL

Norris City, IL


  • Category

    Planters: Drawn

  • Manufacturer

    John Deere

  • Model


  • Model Year


  • Stock Number


  • Serial Number


  • Land Area

    23000 acres

  • Status

    On Lot

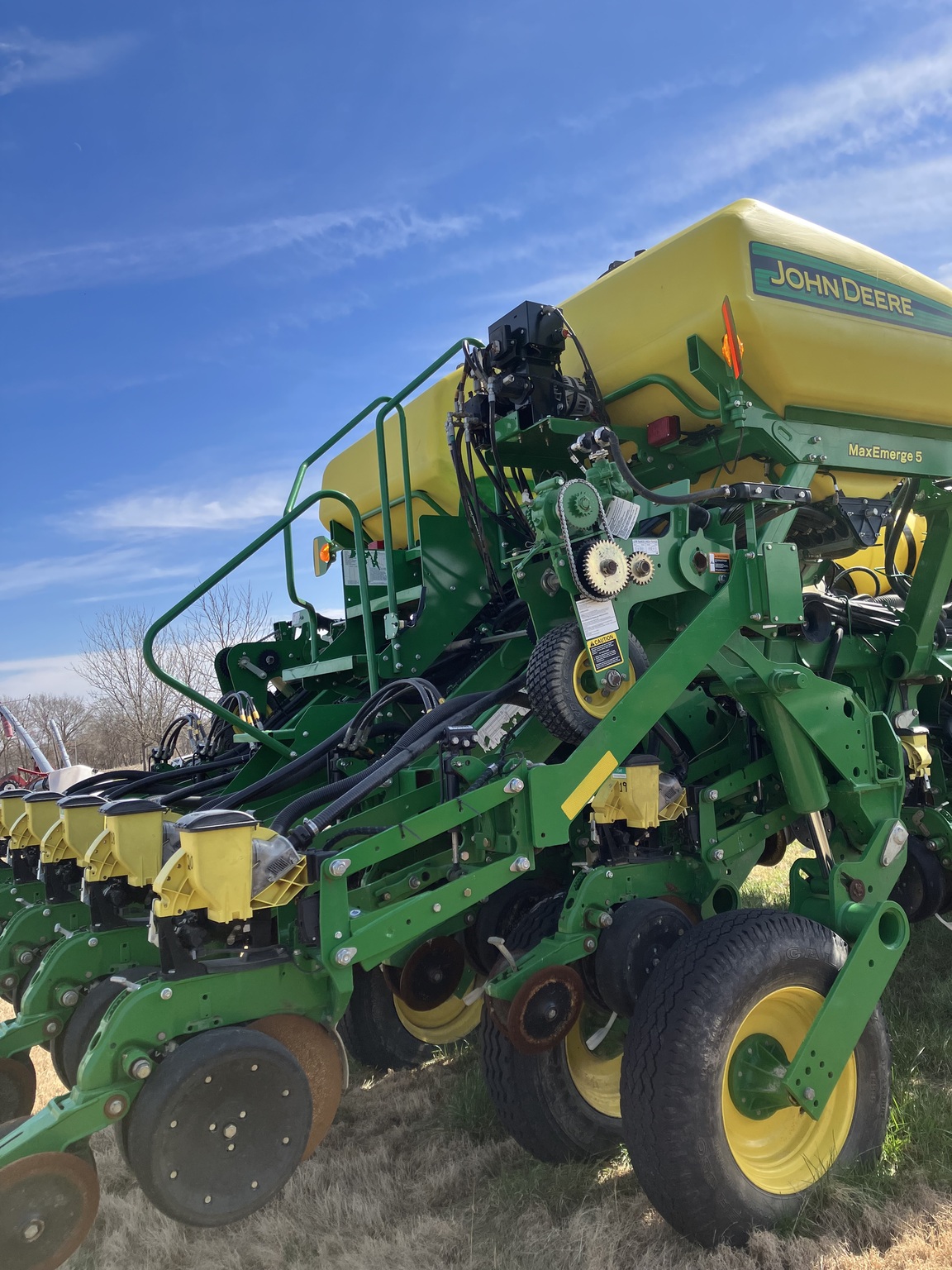

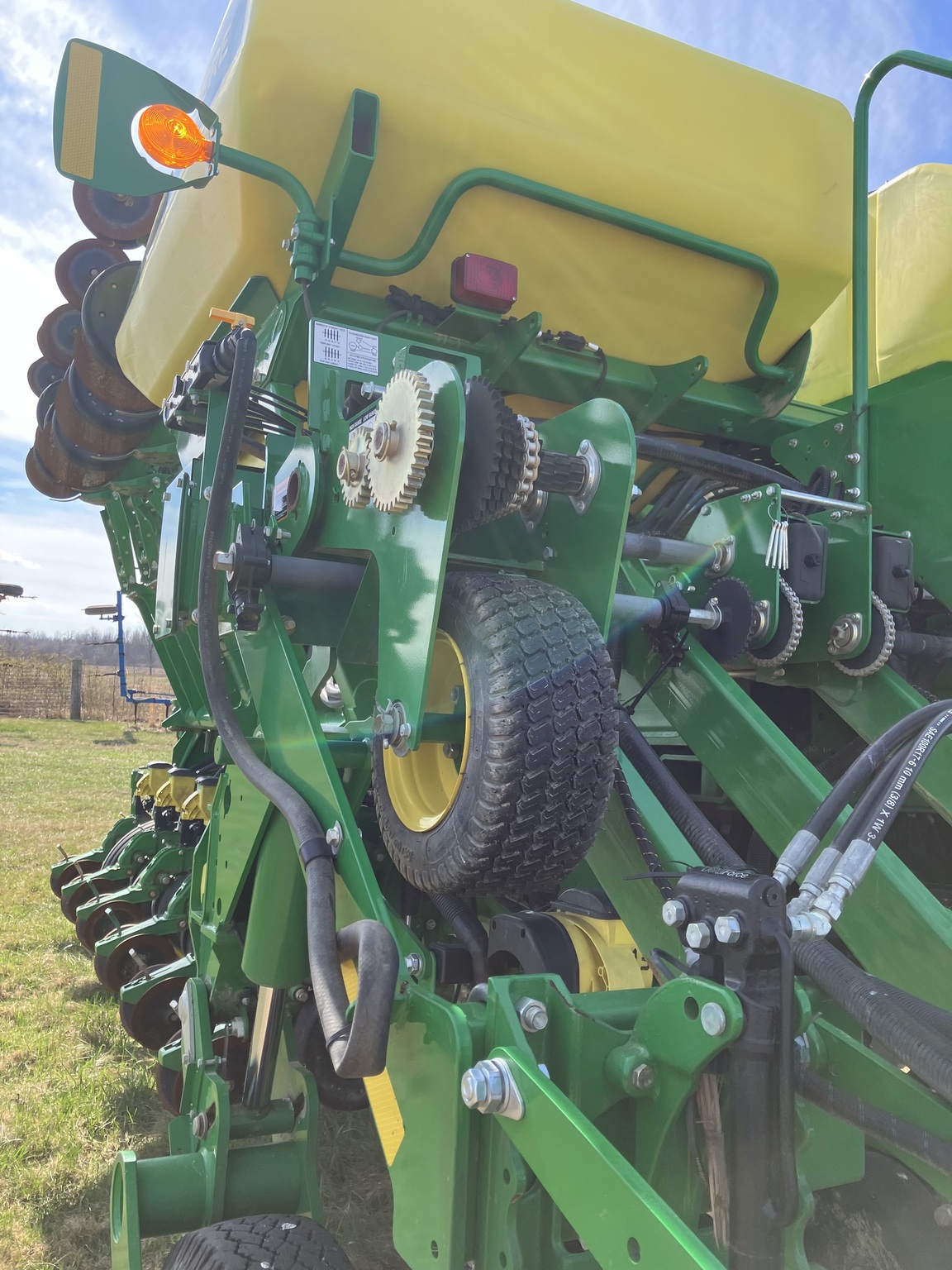

JOHN DEERE 1795 CCS PLANTER, 2015, 16R/31R, 30"/15" row spacing, central commodity system, 2-50 bushel seed tanks, vacuum seed meter, mini seed hoppers, MaxEmerge 5 row units, originally built as mechanical seed drive, has been converted to Precision V-electric drive with individual row unit shut off, planter power hydraulic driven alternator, mechanical drive system is on the planter---not being used, tru-vee openers with single walking gauge wheels, steel scrapers, cast iron closing wheels, SeedStar monitor system (less display, less radar), double crop package parallel arms, Precision Delta Force Hydraulic down force, 3 section flex frame, 15 degrees up/down, independent controlled tri-fold markers w/16" notched blades, Cat 3 two point swivel hitch, 11.00X22.5 duals (4) on main frame, 4-10.00X15 tires on wings. PICTURED WITH LIQUID FERTILIZER SYSTEM WHICH WILL "NOT" BE INCLUDED.

Key Features

  • Rows


  • Row Spacing

    15/30 in

  • Frame

    Flex Fold

  • Metering System

    Finger Pickup

  • Hopper

    Central Fill System

  • Options

    Electric Drive

  • MaxEmerge 5 Package

  • Central Commodity System

  • Liquid Fertiliser, Less Openers

  • Two Point Hitch

  • Seed Drive, Mechanical Transmission With Half-Width Disconnect

  • Pro-Shaft Drive

  • Tru-Vee Openers with Single Walking Gauge Wheels

  • Steel Scrapers

  • Pneumatic Down Force System

  • Cast Iron Closing Wheels

  • SeedStar Monitor System Less Tractor Harness, Less Display, Less Radar

  • Regular Seed Tube with AccuCount Sensor

  • Tri-Fold Markers with 16 In. Notched Disk, Depth Gauging Band and Control Independent of Planter Lift

  • Double Crop Package with Regular Parallel Arms

  • Liquid Insecticide Tanks and Mounting Brackets on Wings

  • Tyre Scraper for Four Main Frame Wheels
