Time and cost savings with Loader Technology package preparation

The loader technology package prep provides the installed harness and controller to further install a hardware bundle that has four key features to make material handling easier and more efficient. The package is only for mid-model year 2022 and newer 6R 110 to 6R 250 Tractors when equipped with the electric joystick and mid- valves.

Technology package hardware unlocks the following loader features when DWS option code is ordered with Loader Technology package prep.

Optional Loader Technology hardware if equipped (code 9661)

Dynamic Weighing System (DWS)
Level to Horizon (LTH)
Return to Position (RTP)
Electronic self-leveling (ESL)

Loader Technology when ordered with Loader Technology package prep (code 9661)

Return to Position (RTP), if equipped (code 9661)

This feature moves the loader boom and bucket automatically to easily preset positions. The operator can save boom upper height, lower height and 2 different bucket angles for both settings A and B. With a push, pull, left or right motion of the joystick just past a built in joystick detent to activate, then the loader automatically returns the boom and bucket to the preset position. This feature works great for an upper height to clear wagon and a lower bucket angle set for dumping then returning bucket back to zero, then lower loader back to a transport position. Re-zeroing implements is easy with a zero soft button on the RTP run page.

RTP can easily be switched off if manual operation is preferred.

Level to Horizon (LTH), if equipped (code 9661)

This feature levels the attachment parallel to the horizon, while conventional loader leveling systems maintain the same angle as the tractor. This means that when operating in hilly conditions, waterways, or in and out of buildings on the farm, the pallet fork, bucket, or other attachment is actively moved into a horizontal position. If this behavior is not desired by the operator, it can be turned off in the tractor display. The attachment is then leveled to the tractor if equipped with a leveling feature such as mechanical self-leveling (MSL). LTH is compatible with both self-leveling and non-self-leveling loaders

Dynamic Weighing System (DWS), if equipped (code 9661)

The DWS feature displays the current weight loaded on the attachment, such as a bucket, spear, or forks. The tractor does not need to stop for weighing, it’s constantly providing a weight reading allowing the operator to fill bucket to the required target weight without interrupting for a separate weighing cycle. Record weight with count as needed with a push of the joystick button.

It also allows the operator to create and save single material groups such as bales, feed, or fertilizer. Also, create and save a material group of up to 6 different materials. Display tracks single material group with section from material dropdown with record of count, minimum, maximum and average weight. The weighing system even registers multiple units. For example, in single material group you can count bales by 1, 2, or 3 with every loading cycle.

Operating the material group from the DWS run page by the selection of different stored material groups. Selecting the material is as easy as selecting one of listed materials and record the weight as you are loading. Weight will be recorded and count down to zero then a green checkmark will appear next to the material signifying that it has been completed, repeat until all materials have been added. A bar diagram and displayed values clearly show how much weight of the current component is still needed to achieve its target weight.

DWS is a must for windy feed yards because you can weigh your lightweight commodities in the shed without blowing feed across your yard when feathering over feed wagon getting to a target weight.

Electronic self-leveling (ESL), if equipped (code 9661)

ESL maintains bucket positioning in any range of the boom. It can be easily activated and deactivated from the run pages. Toggling between ESL and LTH is as simple as selecting which leveling operation is needed through the run page on display. ESL is compatible with both self-leveling and non-self-leveling loaders. ESL is compatible with both self-leveling and non-self-leveling loaders.

Benefits

Faster and easier loading of goods with RTP
No manual controlling of heights and angles to avoid trailers, sheds, etc.
Weighing on the go without the time-consuming needing to stop and perform a weighing cycle
No time lost returning excessive load from mixer wagons
No effort to rewrite the target weight of all individual components when changing silage pits with a different nutrition value or varying herd size
No need to purchase a feeder wagon scale
Fast filling of target weight in the bucket without interrupting to verify the current weight
Less risk of loss of expensive commodities caused by the wind blowing over wagon
Automatic bale counter versus paper notes in the cab
Can weigh liquids and even partial loads on pallets or in containers and buckets
Avoid spilling goods or transport multiple bales without dropping them with the LTH feature

Loader camera option when ordered with Loader Technology package (code 9662)

The loader camera provides visibility to the loader carrier and surroundings. The hooks of the carrier are visible to facilitate connecting attachments. When working with pallet forks, the fork tips are visible to assist picking up pallets with ease. The video image is shown in the built-in display of the 6R Tractor.

The camera is factory-installed in the loader factory; the wiring harness is protected inside the boom. The camera angle can be adjusted if needed. It is possible that a different position of the camera is desired, such as showing the contents of a bucket or the side of a snow blade. For such unique desires, spare cable length is available to enable customized camera positions.

Benefits

Fast connection of attachments
No damage to pallets and goods loaded on forks and spears
Possibility for customized camera position

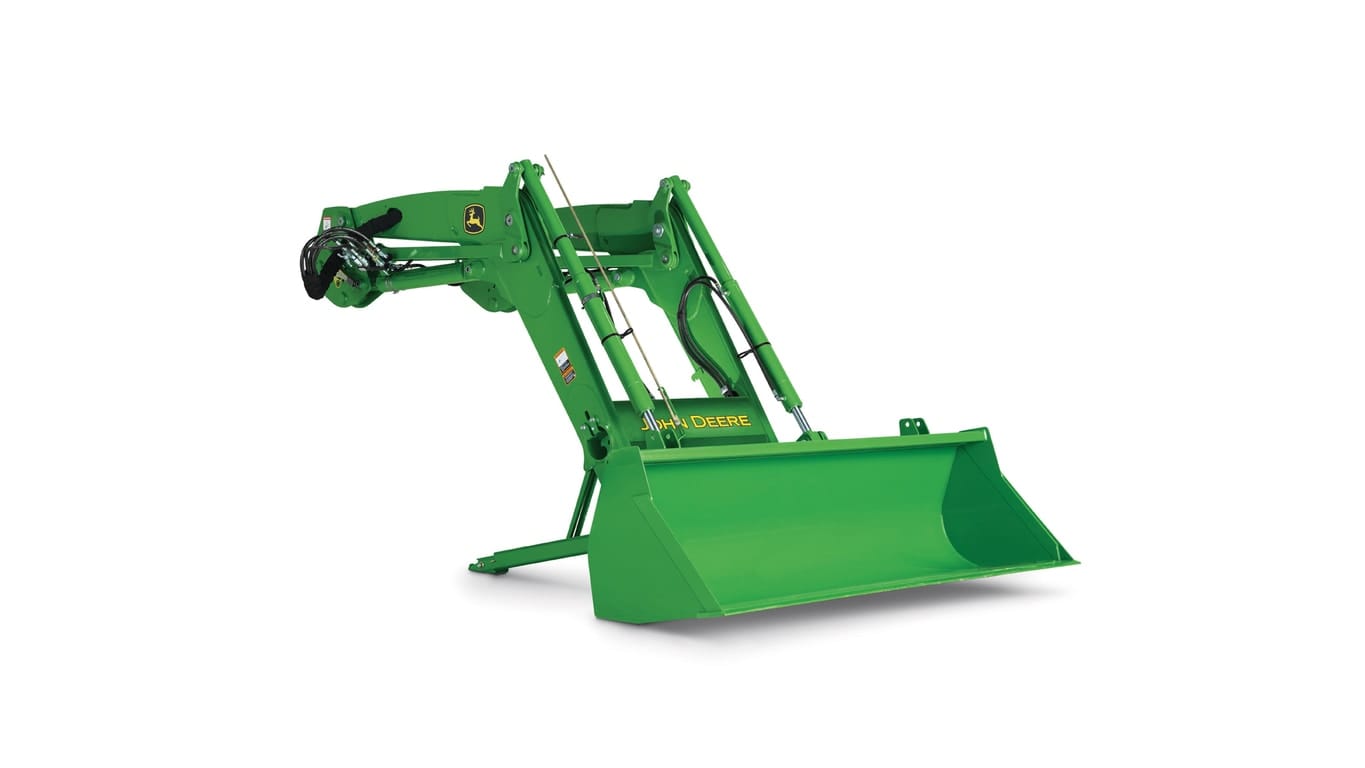

620R Loader
